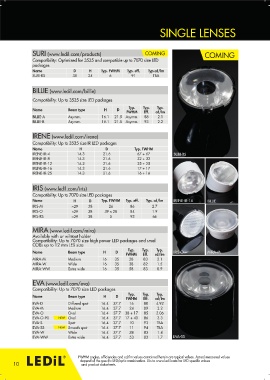

Page 10 - LEDiL Catalogue

SINGLE LENSES

SURI (www.ledil.com/products) COMING COMING
Compatibility: Optimized for 3535 and compatible up to 7070 size LED
packages
Name D H Typ. FWHM Typ. eff. Typ.cd/lm
SURI-RS 38 24 6 91 TBA

BILLIE (www.ledil.com/billie)
Compatibility: Up to 3535 size LED packages
Typ. Typ. Typ.
Name Beam type H D
FWHM Eff. cd/lm
BILLIE-A Asymm. 16.1 21.5 Asymm. 88 2.1
BILLIE-B Asymm. 16.1 21.5 Asymm. 93 2.2
IRENE (www.ledil.com/irene)
Compatibility: Up to 3535 size IR LED packages
Name H D Typ. FWHM
IRENE-IR-4 14.3 21.6 67 + 67 SURI-RS
IRENE-IR-8 14.3 21.6 32 + 32
IRENE-IR-12 14.3 21.6 25 + 25
IRENE-IR-16 14.3 21.6 17 + 17
IRENE-IR-25 14.3 21.6 16 + 16
IRIS (www.ledil.com/iris)
Compatibility: Up to 7070 size LED packages
Name H D Typ. FWHM Typ. eff. Typ. cd/lm IRENE-IR-16 BILLIE
IRIS-M ≈29 38 26 86 2.7
IRIS-O ≈29 38 39 x 28 84 1.9
IRIS-RS ≈29 38 5 93 66

MIRA (www.ledil.com/mira)
Available with or wihtout holder
Compatibility: Up to 7070 size high power LED packages and small
COBs up to 12 mm LES size
Name Beam type H D Typ. Typ. Typ. IRIS-O MIRA-M
FWHM Eff. cd/lm
MIRA-M Medium 16 35 28 83 2.1
MIRA-W Wide 16 35 38 82 1.5
MIRA-WW Extra wide 16 35 58 83 0.9
EVA (www.ledil.com/eva)
Compatibility: Up to 7070 size LED packages
Typ. Typ. Typ.
Name Beam type H D FWHM Eff. cd/lm
EVA-D Diffused spot 16.4 37.7 16 80 4.92
EVA-M Medium 16.4 37.7 24 89 3.2
EVA-O Oval 16.4 37.7 38 + 17 85 3.06
EVA-O-90 NEW! Oval 16.4 37.7 17 + 40 86 3.3
EVA-S Spot 16.4 37.7 10 93 TBA
EVA-SS NEW! Smooth spot 16.4 37.7 11 94 TBA
EVA-W Wide 16.4 37.7 38 83 1.4
EVA-WW Extra wide 16.4 37.7 53 82 1.7 EVA-SS

FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
10 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
