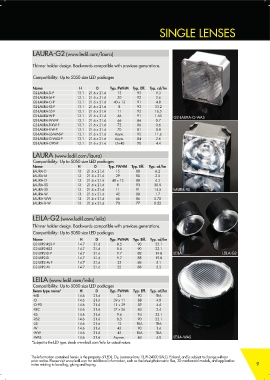

Page 9 - LEDiL Catalogue

SINGLE LENSES

LAURA-G2 (www.ledil.com/laura)

Thinner holder design. Backwards compatible with previous generations.
Compatibility: Up to 5050 size LED packages
Name H D Typ. FWHM Typ. Eff. Typ. cd/lm
G2-LAURA-D-P 13.1 21.6 x 21.6 13 93 9.3
G2-LAURA-M-P 13.1 21.6 x 21.6 30 92 2.6
G2-LAURA-O-P 13.1 21.6 x 21.6 40 x 13 91 4.8
G2-LAURA-RS-P 13.1 21.6 x 21.6 8 93 33.2
G2-LAURA-SS-P 13.1 21.6 x 21.6 11 93 16.5
G2-LAURA-W-P 13.1 21.6 x 21.6 46 91 1.55 G2-LAURA-O-WAS
G2-LAURA-WW-P 13.1 21.6 x 21.6 66 86 0.7
G2-LAURA-R-XW-P 13.1 21.6 x 21.6 72 86 0.6
G2-LAURA-R-W-P 13.1 21.6 x 21.6 70 81 0.8
G2-LAURA-SS-WAS-P 13.1 21.6 x 21.6 Asym. 92 11.6
G2-LAURA-O-WAS-P 13.1 21.6 x 21.6 Asym. 84 2.6
G2-LAURA-O90-P 13.1 21.6 x 21.6 15+40 90 4.4
LAURA (www.ledil.com/laura)
Compatibility: Up to 5050 size LED packages
Name H D Typ. FWHM Typ. Eff. Typ. cd/lm
LAURA-D 13 21.6 x 21.6 15 88 6.2
LAURA-M 13 21.6 x 21.6 29 88 2.5
LAURA-O 13 21.6 x 21.6 40 x 12 88 4.3
LAURA-RS 13 21.6 x 21.6 8 93 30.5
LAURA-SS 13 21.6 x 21.6 11 91 14.5 LAURA-RS
LAURA-W 13 21.6 x 21.6 42 88 1.7
LAURA-WW 13 21.6 x 21.6 66 86 0.70
LAURA-R-W 13 21.6 x 21.6 70 77 0.52
LEILA-G2 (www.ledil.com/leila)
Thinner holder design. Backwards compatible with previous generations.
Compatibility: Up to 5050 size LED packages
Name H D Typ. FWHM Typ. Eff. Typ. cd/lm
G2-LXP2-RS2-P 14.7 21.6 8.5 90 22.1
G2-LXP2-RS2 14.7 21.6 8.5 90 22.1
G2-LXP2-D-P 14.7 21.6 9.7 88 19.8 LEILA LEILA-G2
G2-LXP2-D 14.7 21.6 9.7 88 19.8
G2-LXP2-M-P 14.7 21.6 22 88 5.1
G2-LXP2-M 14.7 21.6 22 88 5.2
LEILA (www.ledil.com/leila)
Compatibility: Up to 5050 size LED packages
Beam type name* H D Typ. FWHM Typ. Eff. Typ. cd/lm
-MD 14.6 21.6 24 90 TBA
-O 14.6 21.6 39 x 11 88 4.8
-O-90 14.6 21.6 11 x 39 89 4.6
-REC 14.6 21.6 37 x 26 84 2.4
-RS 14.6 21.6 9.6 94 23.1
-RS2 14.6 21.6 8,5 90 22.1
-SS 14.6 21.6 12 TBA TBA
-W 14.6 21.6 42 90 1.6
-WW 14.6 21.6 42 TBA TBA
-WAS 14.6 21.6 Asymm. 84 4.0 LEILA-WAS
*Subject to the LED type, check www.ledil.com/leila for actual values.
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 9
