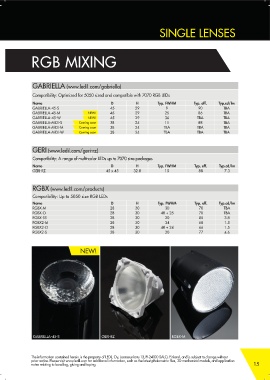

Page 15 - LEDiL Catalogue

SINGLE LENSES

RGB MIXING

GABRIELLA (www.ledil.com/gabriella)
Compatibility: Optimized for 5050 sized and compatible with 7070 RGB LEDs
Name D H Typ. FWHM Typ. eff. Typ.cd/lm
GABRIELLA-45-S 45 29 9 90 TBA
GABRIELLA-45-M NEW! 45 29 25 86 TBA
GABRIELLA-45-W NEW! 45 29 36 TBA TBA
GABRIELLA-MIDI-S Coming soon 38 24 11 88 TBA
GABRIELLA-MIDI-M Coming soon 38 24 TBA TBA TBA
GABRIELLA-MIDI-W Coming soon 38 24 TBA TBA TBA

GERI (www.ledil.com/geri-rz)
Compatibility: A range of multi-color LEDs up to 7070 size packages
Name D H Typ. FWHM Typ. eff. Typ.cd/lm
GERI-RZ 45 x 45 32.8 15 88 7.3

RGBX (www.ledil.com/products)
Compatibility: Up to 5050 size RGB LEDs
Name D H Typ. FWHM Typ. eff. Typ.cd/lm
RGBX-M 28 30 30 70 TBA
RGBX-O 28 30 48 + 25 70 TBA
RGBX-SS 28 30 20 85 3.8
RGBX2-M 28 30 34 68 1.5
RGBX2-O 28 30 48 + 24 66 1.5
RGBX2-S 28 30 20 77 4.6

NEW!

GABRIELLA-45-S GERI-RZ RGBX-M

The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 15
