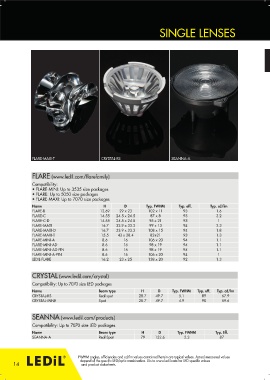

SINGLE LENSES

FLARE-MAXI-T CRYSTAL-RS SEANNA-A

FLARE (www.ledil.com/flarefamily)
Compatibility:
• FLARE-MINI: Up to 3535 size packages
• FLARE: Up to 5050 size packages
• FLARE-MAXI: Up to 7070 size packages
Name H D Typ. FWHM Typ. eff. Typ. cd/lm
FLARE-B 12.69 29 x 23 102 x 11 93 1.6
FLARE-C 14.55 24.5 x 24.5 87 x 8 93 3.2
FLARE-C-D 14.55 24.5 x 24.5 95 x 21 93 1
FLARE-MAXI 16.7 33.9 x 33.3 99 x 13 94 2.3
FLARE-MAXI-D 16.7 33.9 x 33.3 108 x 15 94 1.8
FLARE-MAXI-T 15.5 43 x 28.4 82+21 93 1.3
FLARE-MINI-A 8.6 16 106 x 20 94 1.1
FLARE-MINI-AD 8.6 16 98 x 19 94 1.1
FLARE-MINI-AD-PIN 8.6 16 98 x 19 94 1.1
FLARE-MINI-A-PIN 8.6 16 106 x 20 94 1
LEDIL-FLARE 16.2 23 x 25 138 x 20 92 1.3

CRYSTAL (www.ledil.com/crystal)
Compatibility: Up to 7070 size LED packages
Name Beam type H D Typ. FWHM Typ. eff. Typ. cd/lm
CRYSTAL-RS Real spot 28.7 49.7 5.1 89 67.9
CRYSTAL-MINE Spot 28.7 49.7 4.9 90 59.6

SEANNA (www.ledil.com/products)
Compatibility: Up to 7070 size LED packages
Name Beam type H D Typ. FWHM Typ. Eff.
SEANNA-A Real Spot 79 152.6 2.3 87

FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
14 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
