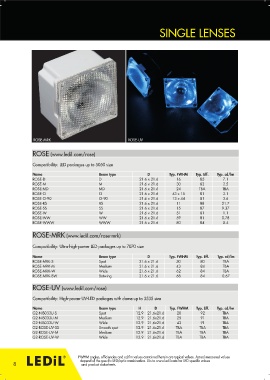

Page 8 - LEDiL Catalogue

SINGLE LENSES

ROSE-MRK ROSE-UV
ROSE (www.ledil.com/rose)

Compatibility: LED packages up to 5050 size
Name Beam type D Typ. FWHM Typ. Eff. Typ. cd/lm
ROSE-D D 21.6 x 21.6 16 85 7.1
ROSE-M M 21.6 x 21.6 30 83 2.5
ROSE-MD MD 21.6 x 21.6 24 TBA TBA
ROSE-O O 21.6 x 21.6 43 x 15 81 3.1
ROSE-O-90 O-90 21.6 x 21.6 13 x 44 81 3.6
ROSE-RS RS 21.6 x 21.6 11 88 21.7
ROSE-SS SS 21.6 x 21.6 15 87 9.37
ROSE-W W 21.6 x 21.6 51 81 1.1
ROSE-WW WW 21.6 x 21.6 59 81 0.78
ROSE-WWW WWW 21.6 x 21.6 80 84 0.4
ROSE-MRK (www.ledil.com/rose-mrk)
Compatibility: Ultra-high-power LED packages up to 7070 size
Name Beam type D Typ. FWHM Typ. Eff. Typ. cd/lm
ROSE-MRK-S Spot 21.6 x 21.6 30 80 TBA
ROSE-MRK-M Medium 21.6 x 21.6 43 84 TBA
ROSE-MRK-W Wide 21.6 x 21.6 62 84 TBA
ROSE-MRK-BW Batwing 21.6 x 21.6 68 84 0.67
ROSE-UV (www.ledil.com/rose)

Compatibility: High-power UV-LED packages with dome up to 3535 size
Name Beam type H D Typ. FWHM Typ. Eff. Typ. cd/lm
G2-NIS033U-S Spot 12.9 21.6x21.6 20 92 TBA
G2-NIS033U-M Medium 12.9 21.6x21.6 25 91 TBA
G2-NIS033U-W Wide 12.9 21.6x21.6 43 91 TBA
G2-ROSE-UV-SS Smooth spot 12.9 21.6x21.6 TBA TBA TBA
G2-ROSE-UV-M Medium 12.9 21.6x21.6 TBA TBA TBA
G2-ROSE-UV-W Wide 12.9 21.6x21.6 TBA TBA TBA

FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
8 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
