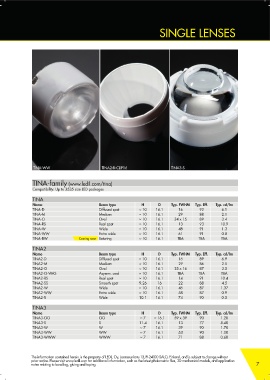

Page 7 - LEDiL Catalogue

SINGLE LENSES

TINA-WW TINA2-R-CLIP16 TINA3-S

TINA-family (www.ledil.com/tina)
Compatibility: Up to 3535 size LED packages
TINA
Name Beam type H D Typ. FWHM Typ. Eff. Typ. cd/lm
TINA-D Diffused spot ≈ 10 16.1 16 92 6.1
TINA-M Medium ≈ 10 16.1 29 88 2.1
TINA-O Oval ≈ 10 16.1 34 x 15 89 3.4
TINA-RS Real spot ≈ 10 16.1 13 93 10.9
TINA-W Wide ≈ 10 16.1 48 91 1.3
TINA-WW Extra wide ≈ 10 16.1 61 91 0.8
TINA-BW Coming soon Batwing ≈ 10 16.1 TBA TBA TBA
TINA2
Name Beam type H D Typ. FWHM Typ. Eff. Typ. cd/lm
TINA2-D Diffused spot ≈ 10 16.1 16 89 6.9
TINA2-M Medium ≈ 10 16.1 29 86 2.5
TINA2-O Oval ≈ 10 16.1 35 x 16 87 3.5
TINA2-O-WAS Asymm. oval ≈ 10 16.1 TBA TBA TBA
TINA2-RS Real spot ≈ 10 16.1 14 91 10.4
TINA2-SS Smooth spot 9.26 16 22 88 4.5
TINA2-W Wide ≈ 10 16.1 46 87 1.37
TINA2-WW Extra wide ≈ 10 16.1 58 87 0.9
TINA2-R Wide 10.1 16.1 74 90 0.5
TINA3
Name Beam type H D Typ. FWHM Typ. Eff. Typ. cd/lm
TINA3-OO OO ≈ 7 ≈ 16.1 59 x 39 90 1.20
TINA3-S S 11.4 16.1 13 77 8.40
TINA3-W W ≈ 7 16.1 39 90 1.70
TINA3-WW WW ≈ 7 16.1 53 90 1.00
TINA3-WWW WWW ≈ 7 16.1 71 88 0.60

The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 7
