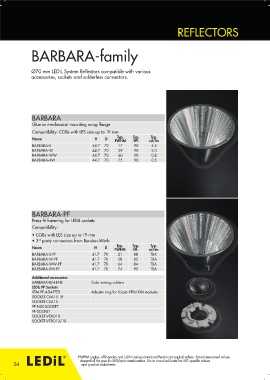

P. 34
REFLECTORS
BARBARA-family
Ø70 mm LEDiL System Reflectors compatible with various
accessories, sockets and solderless connectors.
BARBARA
Glue or mechanical mounting using flange
Compatibility: COBs with LES size up to 19 mm
Typ.
Typ.
Name H D FWHM Typ. cd/lm
Eff.
BARBARA-S 44.7 70 17 90 4.5
BARBARA-W 44.7 70 39 90 2.0
BARBARA-WW 44.7 70 60 90 0.8
BARBARA-XW 44.7 70 75 90 0.5
BARBARA-PF
Press-fit fastening for LEDiL sockets
Compatibility:
• COBs with LES size up to 19 mm
• 3 party connectors from Bender+Wirth
rd
Typ.
Typ.
Name H D FWHM Typ. cd/lm
Eff.
BARBARA-S-PF 41.7 70 21 88 TBA
BARBARA-W-PF 41.7 70 28 85 TBA
BARBARA-WW-PF 41.7 70 64 84 TBA
BARBARA-XW-PF 41.7 70 74 90 TBA
Additional accessories
BARBARA-RZ-LENS Color mixing sublens
LEDiL PF Sockets
XTM-PF-ADAPTER Adapter ring for Xicato XTM/XIM modules
SOCKET-CXA15-18
SOCKET-CXA15
PF-NSX-SOCKET
PF-SOCKET
SOCKET-VERO10
SOCKET-VERO13/18
FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
34 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
