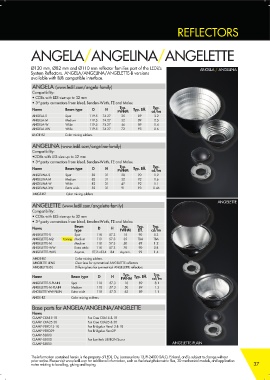

P. 37

REFLECTORS


           ANGELA/ANGELINA/ANGELETTE


           Ø120 mm, Ø82 mm and Ø110 mm reflector families part of the LEDiL’s   ANGELA / ANGELINA
           System Reflectors. ANGELA/ANGELINA/ANGELETTE-B versions
           available with BJB compatible interface.
           ANGELA (www.ledil.com/angela-family)
           Compatibility:
           • COBs with LES size up to 32 mm
           • 3 rd  party connectors from Ideal, Bender+Wirth, TE and Molex
                                        Typ.
                                                  Typ.
           Name       Beam type  D  H  FWHM  Typ. Eff.  cd/lm
           ANGELA-S   Spot    119.5  74.27  25  89  3.2
           ANGELA-M   Medium  119.5  74.27  32  89  2.5
           ANGELA-W   Wide    119.5  74.27  46  89  1.4
           ANGELA-XW  Wide    119.5  74.27  72  93  0.6
           ANGE-RZ    Color mixing sublens
           ANGELINA (www.ledil.com/angelina-family)
           Compatibility:
           •COBs with LES size up to 32 mm
           • 3 rd  party connectors from Ideal, Bender+Wirth, TE and Molex
                                        Typ.
                                                  Typ.
           Name       Beam type  D  H  FWHM  Typ. Eff.  cd/lm
           ANGELINA-S  Spot    82  31   20    90   1.2
           ANGELINA-M  Medium  82  31   32    92   1.6
           ANGELINA-W  Wide    82  31   47    92   1.1
           ANGELINA-XW  Extra wide  82  31  91  93  0.46
            ANGE-RZ   Color mixing sublens
                                                                       ANGELETTE
           ANGELETTE (www.ledil.com/angelette-family)
           Compatibility:
           • COBs with LES size up to 32 mm
           • 3 rd  party connectors from Ideal, Bender+Wirth, TE and Molex
                                        Typ.
                                                  Typ.
           Name          Beam    D   H  FWHM  Typ.   cd/lm
                         type
                                              Eff.
           ANGELETTE-S   Spot   110  57.3  15  90  5.3
           ANGELETTE-M2  Coming  Medium  110  57.3  35  TBA  TBA
           ANGELETTE-M   Medium  110  57.3  50  89  1.2
           ANGELETTE-WW  Extra wide  110  57.3  70  90  0.8
           ANGELETTE-WAS  Asymm.  97.2 x 83.4  84  Asymm.  92  1.4
            ANGE-RZ      Color mixing sublens
            ANGELTTE-LENS  Clear lens for symmetrical ANGELETTE reflectors
            ANGELETTE-DL  Diffusing lens for symmetrical ANGELETTE reflectors
                                         Typ.
                                                   Typ.
           Name         Beam type  D  H  FWHM  Typ. Eff.  cd/lm
           ANGELETTE-S-PLAIN  Spot  110  57.3  10  89  8.1
           ANGELETTE-M-PLAIN  Medium  110  57.3  50  89  1.2
           ANGELETTE-WW-PLAIN  Extra wide  110  57.3  63  89  1.1
           ANGE-RZ      Color mixing sublens
           Base parts for ANGELA/ANGELINA/ANGELETTE
           Name
           CLAMP-CXA15-18    For Cree CXA15 & 18
           CLAMP-CXA25-30    For Cree CXA25 & 30
           CLAMP-VERO13-18   For Bridgelux Vero13 & 18
           CLAMP-VERO29      For Bridgelux Vero29
           CLAMP-S2000
           CLAMP-S3000       For Lumileds LUXEON Sxxxx
           CLAMP-S5000                                   ANGELETTE-PLAIN
           The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
           prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
           notes relating to handling, gluing and taping.                          37
