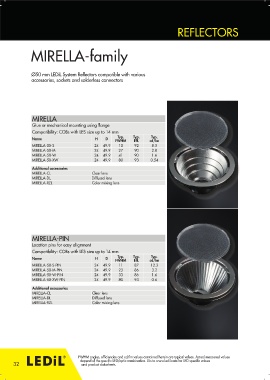

P. 32
REFLECTORS
MIRELLA-family
Ø50 mm LEDiL System Reflectors compatible with various
accessories, sockets and solderless connectors
MIRELLA
Glue or mechanical mounting using flange
Compatibility: COBs with LES size up to 14 mm
Typ.
Typ.
Name H D FWHM Typ. cd/lm
Eff.
MIRELLA-50-S 24 49.9 15 92 8.5
MIRELLA-50-M 24 49.9 27 90 2.8
MIRELLA-50-W 24 49.9 41 90 1.6
MIRELLA-50-XW 24 49.9 80 93 0.54
Additional accessories
MIRELLA-CL Clear lens
MIRELLA-DL Diffused lens
MIRELLA-RZL Color mixing lens
MIRELLA-PIN
Location pins for easy alignment
Compatibility: COBs with LES size up to 14 mm
Typ.
Typ.
Name H D FWHM Typ. cd/lm
Eff.
MIRELLA-50-S-PIN 24 49.9 11 87 12.3
MIRELLA-50-M-PIN 24 49.9 23 86 3.2
MIRELLA-50-W-PIN 24 49.9 33 86 1.6
MIRELLA-50-XW-PIN 24 49.9 80 93 0.6
Additional accessories
MIRELLA-CL Clear lens
MIRELLA-DL Diffused lens
MIRELLA-RZL Color mixing lens
FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
32 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
