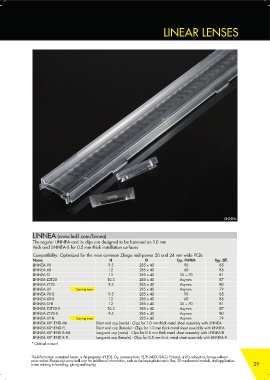

Page 29 - LEDiL Catalogue

LINEAR LENSES

LINNEA

LINNEA (www.ledil.com/linnea)
The regular LINNEA and its clips are designed to be fastened on 1.0 mm
thick and LINNEA-B for 0.5 mm thick installation surfaces
Compatibility: Optimized for the most common Zhaga mid-power 20 and 24 mm wide PCBs
Name H D Typ. FWHM Typ. Eff.
LINNEA-90 9.5 285 x 40 90 85
LINNEA-60 12 285 x 40 60 85
LINNEA-O 12 285 x 40 35 + 70 81
LINNEA-Z2T25 10.3 285 x 40 Asymm. 87
LINNEA-ZT25 9.5 285 x 40 Asymm. 80
LINNEA-UP Coming soon 285 x 40 Asymm. 79
LINNEA-90-B 9.5 285 x 40 90 85
LINNEA-60-B 12 285 x 40 60 85
LINNEA-O-B 12 285 x 40 35 + 70 81
LINNEA-Z2T25-B 10.3 285 x 40 Asymm. 87
LINNEA-ZT25-B 9.5 285 x 40 Asymm. 80
LINNEA-UP-B Coming soon 285 x 40 Asymm. 79
LINNEA-XX*-END-ML Short end cap (male) - Clips for 1.0 mm thick metal sheet assembly with LINNEA
LINNEA-XX*-END-FL Short end cap (female) - Clips for 1.0 mm thick metal sheet assembly with LINNEA
LINNEA-XX*-END-B-ML Long end cap (male) - Clips for 0.5 mm thick metal sheet assembly with LINNEA-B
LINNEA-XX*-END-B-FL Long end cap (female) - Clips for 0.5 mm thick metal sheet assembly with LINNEA-B
* Optical variant
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 29
