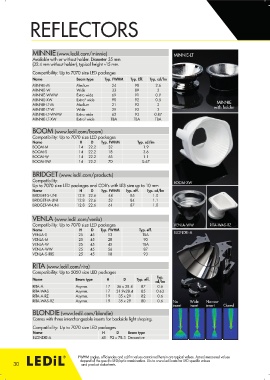

REFLECTORS

MINNIE (www.ledil.com/minnie) MINNIE-LT
Available with or without holder. Diameter 35 mm
(32.4 mm without holder), typical height ≈15 mm.
Compatibility: Up to 7070 size LED packages
Name Beam type Typ. FWHM Typ. Eff. Typ. cd/lm
MINNIE-M Medium 24 90 2.6
MINNIE-W Wide 33 89 2
MINNIE-WWW Extra wide 69 91 0.9
MINNIE-XW Extra 2 wide 90 92 0.5 MINNIE
MINNIE-LT-M Medium 21 92 2 with holder
MINNIE-LT-W Wide 29 92 2
MINNIE-LT-WWW Extra wide 62 93 0.87
MINNIE-LT-XW Extra 2 wide TBA TBA TBA
BOOM (www.ledil.com/boom)
Compatibility: Up to 7070 size LED packages
Name H D Typ. FWHM Typ. cd/lm
BOOM-M 14 22.2 32 1.9
BOOM-S 14 22.2 18 3.6
BOOM-W 14 22.2 55 1.1
BOOM-XW 14 22.2 70 0.67

BRIDGET (www.ledil.com/products)
Compatibility: BOOM-XW
Up to 7070 size LED packages and COB’s with LES size up to 10 mm
Name H D Typ. FWHM Typ. eff. Typ. cd/lm
BRIDGET-S-UNI 12.8 22.6 44 85 1.0
BRIDGET-M-UNI 12.8 22.6 52 84 1.1
BRIDGET-W-UNI 12.8 22.6 61 87 1.0

VENLA (www.ledil.com/venla)
Compatibility: Up to 7070 size LED packages VENLA-WW RITA-WAS-RZ
Name H D Typ. FWHM Typ. eff.
VENLA-S 25 45 13 TBA BLONDIE-A
VENLA-M 25 45 28 90
VENLA-W 25 45 45 TBA
VENLA-WW 25 45 56 87
VENLA-S-IRIS 25 45 18 93
RITA (www.ledil.com/rita)
Compatibility: Up to 5050 size LED packages
Name Beam type H D Typ. eff. Typ.
cd/lm
RITA-A Asymm. 17 36 x 28.4 87 0.6
RITA-WAS Asymm. 17 31.9x28.4 85 0.63
RITA-A-RZ Asymm. 19 35 x 29 82 0.6
RITA-WAS-RZ Asymm. 19 35 x 29 80 0.6 No Wide Narrow
insert insert insert Closed
BLONDIE (www.ledil.com/blondie)
Comes with three interchangeable inserts for backside light shaping.
Compatibility: Up to 7070 size LED packages
Name H D Beam type
BLONDIE-A 45 92 x 78.3 Decorative

FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
30 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
