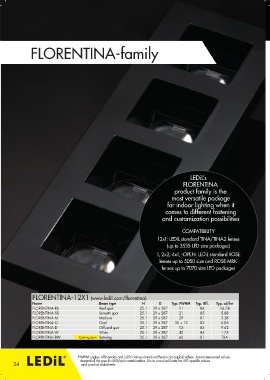

Page 24 - LEDiL Catalogue

FLORENTINA-family

LEDiL’s
FLORENTINA
product family is the
most versatile package
for indoor lighting when it
comes to different fastening
and customization possibilities

COMPATIBILITY
12x1: LEDiL standard TINA/TINA2 lenses
(up to 3535 LED size packages)
1, 2x2, 4x1, -OPEN: LEDiL standard ROSE
lenses up to 5050 size and ROSE-MRK
lenses up to 7070 size LED packages

FLORENTINA-12X1 (www.ledil.com/florentina)
Name Beam type H D Typ. FWHM Typ. Eff. Typ. cd/lm
FLORENTINA-RS Real spot 25.1 29 x 287 11 84 16.74
FLORENTINA-SS Smooth spot 25.1 29 x 287 21 85 5.88
FLORENTINA-M Medium 25.1 29 x 287 29 81 3.28
FLORENTINA-O Oval 25.1 29 x 287 35 + 12 83 5.05
FLORENTINA-D Diffused spot 25.1 29 x 287 13 84 9.62
FLORENTINA-W Wide 25.1 29 x 287 42 84 1.75
FLORENTINA-BW Coming soon Batwing 25.1 29 x 287 60 81 TBA

FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
24 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
