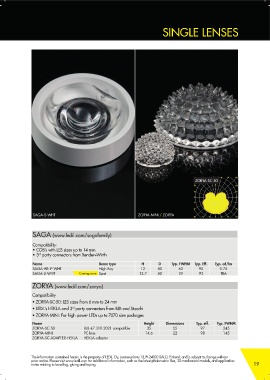

Page 19 - LEDiL Catalogue

SINGLE LENSES

135˚ 150˚ 165˚ 180˚ 165˚ 150˚ 135˚
ZORYA-SC-50
120
90
120˚ 120˚
60
105˚ 105˚
90˚ 90˚
75˚ 75˚
60˚ 60˚
SAGA-S-WHT ZORYA-MINI / ZORYA
45˚ 30˚ 15˚ 0˚ 0˚ 15˚ 30˚ 45˚
SAGA (www.ledil.com/sagafamily)
Compatibility:
• COB’s with LES sizes up to 14 mm
rd
• 3 party connectors from Bender+Wirth
Name Beam type H D Typ. FWHM Typ. Eff. Typ. cd/lm
SAGA-HB-IP-WHT High Bay 12 50 62 90 0.75
SAGA-S-WHT Coming soon Spot 13.7 50 29 93 TBA
ZORYA (www.ledil.com/zorya)
Compatibility
• ZORYA-SC-50: LES sizes from 6 mm to 24 mm
• LEDiL’s HEKLA and 3 party connectors from BJB and Stucchi
rd
• ZORYA-MINI: For high power LEDs up to 7070 size packages
Name Height Dimensions Typ. eff. Typ. FWHM
ZORYA-SC-50 BJB 47.319.2021 compatible 35 55 97 245
ZORYA-MINI PC lens 14.6 22 98 145
ZORYA-SC-ADAPTER-HEKLA HEKLA adapter

The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 19
