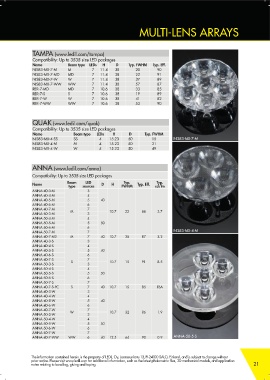

MULTI-LENS ARRAYS

TAMPA (www.ledil.com/tampa)
Compatibility: Up to 3535 size LED packages
Name Beam type LEDs H D Typ. FWHM Typ. Eff.
NIS83-MX-7-M M 7 11.4 38 20 90
NIS83-MX-7-MD MD 7 11.4 38 22 91
NIS83-MX-7-W W 7 11.4 38 37 89
NIS83-MX-7-WW WW 7 11.4 38 57 87
RER-7-MD MD 7 10.6 38 33 85
RER-7-S S 7 10.6 38 19 89
RER-7-W W 7 10.6 38 41 82
RER-7-WW WW 7 10.6 38 53 90

QUAK (www.ledil.com/quak)
Compatibility: Up to 3535 size LED packages
Name Beam type LEDs H D Typ. FWHM
NIS83-MX-4-SS SS 4 15.23 50 15 NIS83-MX-7-M
NIS83-MX-4-M M 4 15.23 50 21
NIS83-MX-4-W W 4 15.23 50 49

ANNA (www.ledil.com/anna)
Compatibility: Up to 3535 size LED packages
LED
Typ.
Typ.
Name Beam sources D H FWHM Typ. Eff. cd/lm
type
ANNA-40-3-M 3
ANNA-40-4-M 4
ANNA-40-5-M 5 40
ANNA-40-6-M 6
ANNA-40-7-M 7
ANNA-50-3-M M 3 10.7 22 88 3.7
ANNA-50-4-M 4
ANNA-50-5-M 5 50
ANNA-50-6-M 6
ANNA-50-7-M 7 NIS83-MX-4-M
ANNA-40-7-M2 M 7 40 10.7 25 87 3.2
ANNA-40-3-S 3
ANNA-40-4-S 4
ANNA-40-5-S 5 40
ANNA-40-6-S 6
ANNA-40-7-S 7
ANNA-50-3-S S 3 10.7 15 91 8.5
ANNA-50-4-S 4
ANNA-50-5-S 5 50
ANNA-50-6-S 6
ANNA-50-7-S 7
ANNA-40-7-S-PC S 7 40 10.7 15 85 TBA
ANNA-40-3-W 3
ANNA-40-4-W 4
ANNA-40-5-W 5 40
ANNA-40-6-W 6
ANNA-40-7-W 7
ANNA-50-3-W W 3 10.7 32 86 1.9
ANNA-50-4-W 4
ANNA-50-5-W 5 50
ANNA-50-6-W 6
ANNA-50-7-W 7
ANNA-40-7-WW WW 6 40 12.5 64 90 0.9 ANNA-50-5-S
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 21
