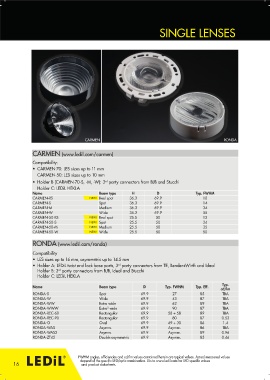

Page 16 - LEDiL Catalogue

SINGLE LENSES

CARMEN RONDA
CARMEN (www.ledil.com/carmen)
Compatibility:
• CARMEN-70: LES sizes up to 11 mm
CARMEN-50: LES sizes up to 10 mm
rd
• Holder B (CARMEN-70-S, -M, -W): 3 party connectors from BJB and Stucchi
Holder C: LEDiL HEKLA
Name Beam type H D Typ. FWHM
CARMEN-RS NEW! Real spot 36.3 69.9 10
CARMEN-S Spot 36.3 69.9 14
CARMEN-M Medium 36.3 69.9 34
CARMEN-W Wide 36.3 69.9 55
CARMEN-50-RS NEW! Real spot 25.5 50 12
CARMEN-50-S NEW! Spot 25.5 50 24
CARMEN-50-M NEW! Medium 25.5 50 35
CARMEN-50-W NEW! Wide 25.5 50 50
RONDA (www.ledil.com/ronda)
Compatibility
• LES sizes up to 16 mm, asymmetric up to 14.5 mm
• Holder A: LEDiL twist and lock base parts, 3 party connectors from TE, Bender+Wirth and Ideal
rd
Holder B: 3 party connectors from BJB, Ideal and Stucchi
rd
Holder C: LEDiL HEKLA
Name Beam type D Typ. FWHM Typ. Eff. Typ.
cd/lm
RONDA-S Spot 69.9 27 85 TBA
RONDA-W Wide 69.9 43 87 TBA
RONDA-WW Extra wide 69.9 62 89 TBA
RONDA-WWW Extra 2 wide 69.9 90 87 TBA
RONDA-REC-60 Rectangular 69.9 58 + 58 89 TBA
RONDA-REC-90 Rectangular 69.9 80 87 0.53
RONDA-O Oval 69.9 49 + 30 86 1.4
RONDA-WAS Asymm. 69.9 Asymm. 86 TBA
RONDA-WAS2 Asymm. 69.9 Asymm. 89 0.96
RONDA-ZT45 Double asymmetric 69.9 Asymm. 85 0.46
FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
16 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
