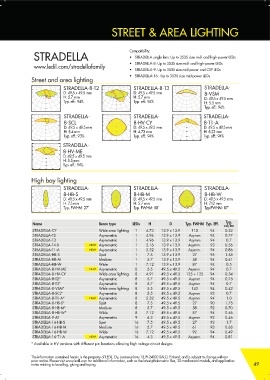

Page 49 - LEDiL Catalogue

STREET & AREA LIGHTING

STRADELLA Compatibility:
• STRADELLA single lens: Up to 3535 size mid- and high-power LEDs
www.ledil.com/stradellafamily • STRADELLA-8: Up to 3535 size mid- and high-power LEDs
• STRADELLA-9: Up to 3535 size mid power and CSP LEDs
• STRADELLA-16: Up to 3535 size mid-power LEDs
Street and area lighting
STRADELLA-8-T2 STRADELLA-8-T3 STRADELLA-
105˚ 105˚ 105˚ 105˚
90˚ 90˚ 90˚ 90˚
75˚ 75˚ D: 49.5 x 49.5 mm 75˚ 75˚ D: 49.5 x 49.5 mm 8-VSM
60˚ 60˚ H: 5.7 mm 60˚ 60˚ H: 5.7 mm D: 49.5 x 49.5 mm
Typ. eff.: 94% 300 Typ. eff.: 94%
45˚ 45˚ 45˚ 45˚ H: 5.5 mm
600
400
800 Typ. eff.: 94%
500
30˚1 5˚ 0˚ 0˚ 15˚3 0˚ 30˚1 5˚ 0˚ 0˚ 15˚3 0˚
STRADELLA- STRADELLA- 90° STRADELLA-
105° 105° 105˚ 105˚ 105°
90° 90° 90˚ 90˚ 90°
8-SCL 8-HV-CY 8-T1-A
75° 75° 75˚ 75˚ 75°
60° 60° 60˚ 60˚
D: 49.5 x 49.5 mm 160 D: 49.5 x 49.5 mm 600 D: 49.5 x 49.5 mm
300 60°
450
45° 45° H: 5.4 mm 45˚ 240 45˚ H: 4.73 mm 45° 900 45° H: 5.32 mm
600
Typ. eff.: 93% Typ. eff.: 94% Typ. eff.: 94%
750 1200
30° 15° 0° 0° 15° 30° 30˚1 5˚ 0˚0˚ 15˚3 0˚ 15° 0° 0° 15° 30°
STRADELLA-
105° 105°
90° 90°
8-HV-ME
75° 75°
D: 49.5 x 49.5 mm
60° 60°
300
45° 45° H: 5.5 mm
400
Typ. eff.: 94%
500
30° 15° 0° 0° 15° 30°
High bay lighting
STRADELLA- STRADELLA- STRADELLA-
105° 105° 105° 105° 105° 105°
90° 90° 90° 90° 90° 90°
8-HB-S 8-HB-M 8-HB-W
75° 75° 75° 75° 75° 75°
D: 49.5 x 49.5 mm D: 49.5 x 49.5 mm D: 49.5 x 49.5 mm
60° 800 60° 60° 300 60° 60° 200 60°
1200 450 300
45° 45° H: 7.5 mm 45° 45° H: 5.7 mm 45° 45° H: 7.12 mm
1600 600 400
Typ. FWHM: 27˚ Typ. FWHM: 58˚ Typ.FWHM: 87˚
2000 750 500
30°1 5° 0°0° 15°3 0° 30°1 5° 0°0° 15° 30° 30° 15°0 0°° 15° 30°
Typ.
Name Beam type LEDs H D Typ. FWHM Typ. Eff. cd/lm
STRADELLA-CY Wide area lighting 1 4.73 13.9 x 13.9 115 94 0.32
STRADELLA-T2 Asymmetric 1 4.96 13.9 x 13.9 Asymm 94 0.77
STRADELLA-T3 Asymmetric 1 4.96 13.9 x 13.9 Asymm 94 0.7
STRADELLA-T4-B NEW! Asymmetric 1 5.16 13.9 x 13.9 Asymm. 93 0.56
STRADELLA-T1-A NEW! Asymmetric 1 5.32 13.9 x 13.9 Asymm. 94 0.86
STRADELLA-HB-S Spot 1 7.5 13.9 x 13.9 27 95 1.55
STRADELLA-HB-M Medium 1 5.7 13.9 x 13.9 58 94 0.61
STRADELLA-HB-W Wide 1 7.12 13.9 x 13.9 87 94 0.5
STRADELLA-8-HV-ME NEW! Asymmetric 8 5.5 49.5 x 49.5 Asymm. 94 0.7
STRADELLA-8-HV-CY Wide area lighting 8 4.91 49.5 x 49.5 125 + 125 94 0.34
STRADELLA-8-T2* Asymmetric 8 5.7 49.5 x 49.5 Asymm 94 0.75
STRADELLA-8-T3* Asymmetric 8 5.7 49.5 x 49.5 Asymm 94 0.7
STRADELLA-8-VSM* Wide area lighting 8 5.5 49.5 x 49.5 143 94 0.42
STRADELLA-8-SCL* Asymmetric 8 5.5 49.5 x 49.5 Asymm 93 0.7
STRADELLA-8-T1-A* NEW! Asymmetric 8 5.32 49.5 x 49.5 Asymm 94 1.0
STRADELLA-8-HB-S* Spot 8 7.5 49.5 x 49.5 27 90 1.75
STRADELLA-8-HB-M* Medium 8 5.7 49.5 x 49.5 58 92 0.70
STRADELLA-8-HB-W* Wide 8 7.12 49.5 x 49.5 87 94 0.46
STRADELLA-9-AT Asymmetric 9 6.3 49.5 x 49.5 Asymm 92 0.46
STRADELLA-16-HB-S Spot 16 7.5 49.5 x 49.5 27 93 1.7
STRADELLA-16-HB-M Medium 16 5.7 49.5 x 49.5 61 93 0.68
STRADELLA-16-HB-W Wide 16 7.12 49.5 x 49.5 92 94 0.49
STRADELLA-16-T1-A NEW! Asymmetric 16 4.3 49.5 x 49.5 Asymm. 94 0.81
* Available in HV versions with different pin locations allowing high voltage circuit designs
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 49
