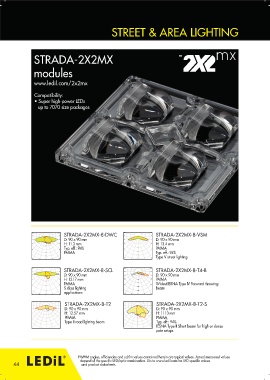

Page 44 - LEDiL Catalogue

STREET & AREA LIGHTING

STRADA-2X2MX
modules

www.ledil.com/2x2mx
Compatibility:
• Super high-power LEDs
up to 7070 size packages

STRADA-2X2MX-8-DWC STRADA-2X2MX-8-VSM
105˚ 105˚ 105˚ 105˚
90˚ 90˚ 90˚ 90˚
75˚ 75˚ D: 90 x 90 mm 75˚ 75˚ D: 90 x 90 mm
200
60˚ 60˚ H: 11.3 mm 60˚ 200 60˚ H: 13.4 mm
300 300
45˚ 400 45˚ Typ. eff.: 94% 45˚ 45˚ PMMA
500 PMMA 400 Typ. eff.: 94%
500
600 Type V street lighting
30˚ 15˚ 0˚ 0˚ 15˚ 30˚
30˚ 15˚ 0˚ 0˚ 15˚ 30˚
STRADA-2X2MX-8-SCL STRADA-2X2MX-8-T4-B
105˚ 105˚ 105˚ 105˚
90˚ 90˚ 90˚ 90˚
75˚ 75˚ D: 90 x 90 mm 75˚ 75˚ D: 90 x 90 mm
60˚ 60˚ H: 13.17 mm 60˚ 400 60˚ PMMA
320
PMMA 600 Widest IESNA Type IV Forward throwing
45˚ 45˚ 45˚ 45˚
480 800
S class lighting beam
applications
640 1000
30˚ 15˚ 0˚ 0˚ 15˚ 30˚ 30˚ 15˚ 0˚0˚ 15˚ 30˚
STRADA-2X2MX-8-T2 STRADA-2X2MX-8-T2-S
D: 90 x 90 mm D: 90 x 90 mm
H: 12.57 mm H: 11.13 mm
PMMA PMMA
Type II road lighting beam Typ. eff.: 94%
IESNA Type II Short beam for high or dense
pole setups
FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
44 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
