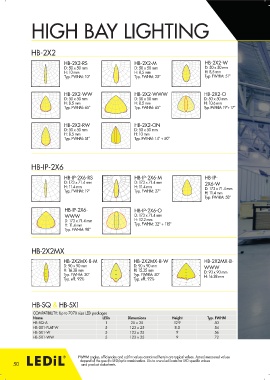

Page 50 - LEDiL Catalogue

HIGH BAY LIGHTING

HB-2X2
HB-2X2-RS HB-2X2-M HB-2X2-W
D: 50 x 50 mm D: 50 x 50 mm D: 50 x 50 mm
H: 10 mm H: 8,5 mm H: 8,5 mm
Typ. FWHM: 10° Typ. FWHM: 25° Typ. FWHM: 51°

HB-2X2-WW HB-2X2-WWW HB-2X2-O
D: 50 x 50 mm D: 50 x 50 mm D: 50 x 50 mm
H: 8.5 mm H: 8.5 mm H: 10.6 mm
Typ. FWHM: 65° Typ. FWHM: 65° Typ. FWHM: 19°+ 17°

HB-2X2-RW HB-2X2-ON
D: 50 x 50 mm D: 50 x 50 mm
H: 8.5 mm H: 10 mm
Typ. FWHM: 51° Typ. FWHM: 14° + 50°

HB-IP-2X6
HB-IP-2X6-RS HB-IP-2X6-M HB-IP-
D: 173 x 71.4 mm D: 173 x 71.4 mm 2X6-W
H: 11.4 mm H: 11.4 mm D: 173 x 71.4 mm
Typ. FWHM: 19° Typ. FWHM: 27° H: 11.4 mm
Typ. FWHM: 58°

HB-IP-2X6- HB-IP-2X6-O
WWW D: 173 x 71.4 mm
D: 173 x 71.4 mm H: 12.2 mm
H: 11.4 mm Typ. FWHM: 32° + 115°
Typ. FWHM: 98°

HB-2X2MX
90˚ HB-2X2MX-8-M 90˚ HB-2X2MX-8-W HB-2X2MX-8-
105˚ 105˚ 105˚ 105˚ 105˚ 105˚
90˚ 90˚ 90˚ 90˚
75˚ D: 90 x 90 mm 75˚ D: 90 x 90 mm
75˚ 75˚ 75˚ 75˚ WWW
60˚ H: 16.38 mm 60˚ H: 15.35 mm 200
1000
60˚ 60˚ 400 60˚ 60˚
45˚ Typ. FWHM: 30° 600 45˚ Typ. FWHM: 50°
1500 300 D: 90 x 90 mm
45˚ 2000 45˚ 45˚ 400 45˚ H: 16.38 mm
Typ. eff.: 92% 800 Typ. eff.: 92% 500
2500
600
3000
30˚ 15˚ 0˚ 0˚ 15˚ 30˚
30˚1 5˚ 0˚ 0˚ 15˚ 30˚ 30˚ 15˚ 0˚ 0˚ 15˚ 30˚
HB-SQ & HB-5X1
COMPATIBILITY: Up to 7070 size LED packages
Name LEDs Dimensions Height Typ. FWHM
HB-SQ-A 1 25 x 25 12.9 50
HB-5X1-FLAT-W 5 123 x 25 8.5 54
HB-5X1-W 5 123 x 25 9 56
HB-5X1-WW 5 123 x 25 9 72
FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
50 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
