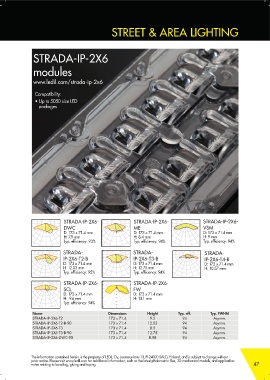

Page 47 - LEDiL Catalogue

STREET & AREA LIGHTING

STRADA-IP-2X6

modules

www.ledil.com/strada-ip-2x6
Compatibility:
• Up to 5050 size LED
packages

STRADA-IP-2X6- STRADA-IP-2X6- STRADA-IP-2X6-
DWC ME VSM
D: 173 x 71.4 mm D: 173 x 71.4 mm D: 173 x 71.4 mm
H: 7.9 mm H: 8.4 mm H: 9 mm
Typ. efficiency: 93% Typ. efficiency: 94% Typ. efficiency: 94%
STRADA- STRADA- STRADA-
IP-2X6-T2-B IP-2X6-T3-B IP-2X6-T4-B
D: 173 x 71.4 mm D: 173 x 71.4 mm D: 173 x 71.4 mm
H: 12.03 mm H: 12.75 mm H: 10.57 mm
Typ. efficiency: 95% Typ. efficiency: 94%
STRADA-IP-2X6- 105° 90° 105° 90° STRADA-IP-2X6-
SCL 75° 100 75° FW
D: 173 x 71.4 mm 60° 150 60° D: 173 x 71.4 mm
H: 9.6 mm 45° 200 45° H: 13.1 mm
Typ. efficiency: 94% 250
300
30°1 5° 0° 0° 15° 30°
Name Dimensions Height Typ. eff. Typ. FWHM
STRADA-IP-2X6-T2 173 x 71.4 9.2 94 Asymm.
STRADA-IP-2X6-T2-B-90 173 x 71.4 12.03 94 Asymm.
STRADA-IP-2X6-T3 173 x 71.4 8.5 94 Asymm.
STRADA-IP-2X6-T3-B-90 173 x 71.4 12.75 94 Asymm.
STRADA-IP-2X6-DWC-90 173 x 71.4 8.98 94 Asymm.
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 47
