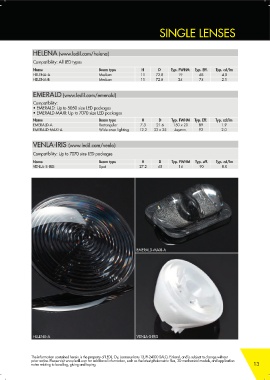

Page 13 - LEDiL Catalogue

SINGLE LENSES

HELENA (www.ledil.com/helena)
Compatibility: All LED types
Name Beam type H D Typ. FWHM Typ. Eff. Typ. cd/lm
HELENA-A Medium 11 72.8 19 68 4.0
HELENA-B Medium 11 72.8 24 74 2.1
EMERALD (www.ledil.com/emerald)
Compatibility:
• EMERALD: Up to 5050 size LED packages
• EMERALD-MAXI: Up to 7070 size LED packages
Name Beam type H D Typ. FWHM Typ. Eff. Typ. cd/lm
EMERALD-A Rectangular 7.3 21.6 150 x 20 89 1.9
EMERALD-MAXI-A Wide area lighting 12.2 33 x 25 Asymm. 92 2.0

VENLA-IRIS (www.ledil.com/venla)
Compatibility: Up to 7070 size LED packages
Name Beam type H D Typ. FWHM Typ. eff. Typ. cd/lm
VENLA-S-IRIS Spot 27.2 45 16 90 8.0

EMERALD-MAXI-A

HELENA-A VENLA-S-IRIS

The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 13
