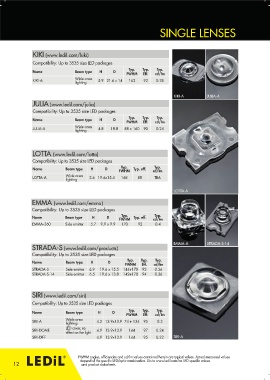

SINGLE LENSES

KIKI (www.ledil.com/kiki)
Compatibility: Up to 3535 size LED packages
Typ. Typ. Typ.
Name Beam type H D FWHM Eff. cd/lm
KIKI-A Wide area 5.9 21.6 x 14 163 92 0.28
lighting
KIKI-A JULIA-A
JULIA (www.ledil.com/julia)
Compatibility: Up to 3535 size LED packages
Name Beam type H D Typ. Typ. Typ.
FWHM Eff. cd/lm
JULIA-A Wide area 4.8 18.8 88 + 160 90 0.24
lighting

LOTTA (www.ledil.com/lotta)
Compatibility: Up to 3535 size LED packages
Typ.
Typ.
Name Beam type H D FWHM Typ. eff. cd/lm
LOTTA-A Wide area 3.6 19.6x15.4 168 88 TBA
lighting
LOTTA-A
EMMA (www.ledil.com/emma)
Compatibility: Up to 3535 size LED packages
Typ.
Typ.
Name Beam type H D FWHM Typ. eff. cd/lm
EMMA-360 Side emitter 5.7 9.9 x 9.9 170 92 0.4
EMMA-A STRADA-S-14
STRADA-S (www.ledil.com/products)
Compatibility: Up to 3535 size LED packages
Typ. Typ. Typ.
Name Beam type H D FWHM Eff. cd/lm
STRADA-S Side emitter 6.9 19.6 x 15.5 144+170 93 0.36
STRADA-S-14 Side emitter 6.5 19.6 x 13.8 142+170 94 0.36

SIRI (www.ledil.com/siri)
Compatibility: Up to 3535 size LED packages
Name Beam type H D Typ. Typ. Typ.
FWHM Eff. cd/lm
SIRI-A Wide area 4.2 13.9x13.9 74 + 134 95 0.3
lighting
SIRI-DOME LED cover, no 4.9 13.9x13.9 144 97 0.24
effect on the light
SIRI-DIFF 4.9 13.9x13.9 144 95 0.22 SIRI-A

FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
12 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
