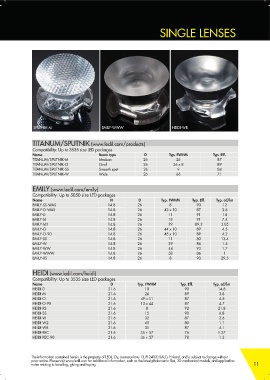

SINGLE LENSES

SPUTNIK-M EMILY-WWW HEIDI-WR

TITANUM/SPUTNIK (www.ledil.com/products)
Compatibility: Up to 3535 size LED packages
Name Beam type D Typ. FWHM Typ. Eff.
TITANUM/SPUTNIK-M Medium 26 26 87
TITANUM/SPUTNIK-O Oval 26 36 x 8 89
TITANUM/SPUTNIK-SS Smooth spot 26 9 84
TITANUM/SPUTNIK-W Wide 26 66 71

EMILY (www.ledil.com/emily)
Compatibility: Up to 5050 size LED packages
Name H D Typ. FWHM Typ. Eff. Typ. cd/lm
EMILY-SS-WAS 14.8 26 8 90 12
EMILY-O-WAS 14.8 26 43 x 10 87 3.6
EMILY-D 14.8 26 11 91 14
EMILY-M 14.8 26 18 91 7.4
EMILY-M2 14.8 26 29 89,2 3.05
EMILY-O 14.8 26 44 x 10 89 4.5
EMILY-O-90 14.8 26 45 x 10 89 4.2
EMILY-SS 14.8 26 11 80 13.4
EMILY-W 14.8 26 39 86 1.5
EMILY-WW 14.8 26 44 93 1.7
EMILY-WWW 14.8 26 58 86 1
EMILY-RS 14.8 26 8 90 29.5
HEIDI (www.ledil.com/heidi)
Compatibility: Up to 3535 size LED packages
Name D Typ. FWHM Typ. Eff. Typ. cd/lm
HEIDI-D 21.6 10 90 14.8
HEIDI-M 21.6 26 89 3.8
HEIDI-O 21.6 49 x 11 87 4.5
HEIDI-O-90 21.6 13 x 44 87 4.7
HEIDI-RS 21.6 8 92 21.8
HEIDI-SS 21.6 15 90 6.8
HEIDI-W 21.6 32 87 2.6
HEIDI-W2 21.6 45 80 1.1
HEIDI-WR 21.6 31 87 4.1
HEIDI-REC 21.6 35 + 57 76 1.37
HEIDI-REC-90 21.6 36 + 57 78 1.3

The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland, and is subject to change without
prior notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application
notes relating to handling, gluing and taping. 11
