LEDiL Compatible Modules

Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
1X-ML30120NC-NF2757GR-6
 30X120 6 3000k 260mA 19 V 5 w 713 148 DATASHEET

SOLUTIONS
30X120 6 3000k 300mA 19 V 6 w 810 143
30X120 6 3000k 350mA 19 V 7 w 927 137
30X120 6 4000k 260mA 19 V 5 w 723 150
30X120 6 4000k 300mA 19 V 6 w 822 145
30X120 6 4000k 350mA 19 V 7 w 941 139
30X120 6 5000k 260mA 19 V 5 w 777 161
30X120 6 5000k 300mA 19 V 6 w 882 156
30X120 6 5000k 350mA 19 V 7 w 1009 149
30X120 6 6500k 260mA 19 V 5 w 772 160
30X120 6 6500k 300mA 19 V 6 w 876 154
30X120 6 6500k 350mA 19 V 7 w 1002 148
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-ML25287NC40-NF2L757GR-12
 25×287 12 3000k 350mA 18 V 6 w 994 161 DATASHEET

SOLUTIONS
25×287 12 3000k 500mA 18 V 9 w 1377 150
25×287 12 3000k 700mA 19 V 13 w 1853 137
25×287 12 4000k 350mA 18 V 6 w 1009 164
25×287 12 4000k 500mA 18 V 9 w 1397 152
25×287 12 4000k 700mA 19 V 13 w 1881 139
25×287 12 5000k 350mA 18 V 6 w 1084 176
25×287 12 5000k 500mA 18 V 9 w 1500 163
25×287 12 5000k 700mA 19 V 13 w 2018 149
25×287 12 6500k 350mA 18 V 6 w 1076 176
25×287 12 6500k 500mA 18 V 9 w 1490 162
25×287 12 6500k 700mA 19 V 13 w 2005 148
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-ML16300NC-NF757GR-12
 16×300 12 3000k 300mA 38 V 11 w 1620 143 DATASHEET

SOLUTIONS
16×300 12 3000k 350mA 39 V 14 w 1854 137
16×300 12 4000k 300mA 38 V 11 w 1644 145
16×300 12 4000k 350mA 39 V 14 w 1881 139
16×300 12 5000k 300mA 38 V 11 w 1764 156
16×300 12 5000k 350mA 39 V 14 w 2018 149
16×300 12 6500k 300mA 38 V 11 w 1752 154
16×300 12 6500k 350mA 39 V 14 w 2005 148
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-ML16300NC-NCS119xx-12
 16×300 12 RED 350mA 13 V 5 w 359 79 DATASHEET

SOLUTIONS
16×300 12 RED 500mA 13 V 7 w 515 77
16×300 12 RED 700mA 14 V 10 w 721 75
16×300 12 GREEN 350mA 20 V 7 w 894 128
16×300 12 GREEN 500mA 21V 10 w 1186 114
16×300 12 GREEN 700mA 22 V 15 w 1531 101
16×300 12 BLUE 350mA 18 V 6 w 211 33
16×300 12 BLUE 500mA 19 V 10 w 290 30
16×300 12 BLUE 700mA 20 V 14 w 384 28
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-ML24560LM-2835EA-48
 24×560 48 3000k 260mA 47 V 8 w 1049 137 DATASHEET

SOLUTIONS
24×560 48 3000k 350mA 48 V 11 w 1296 123
24×560 48 4000k 260mA 47 V 8 w 1134 148
24×560 48 4000k 350mA 48 V 11 w 1402 133
24×560 48 5000k 260mA 47 V 8 w 1130 147
24×560 48 5000k 350mA 48 V 11 w 1397 132
24×560 48 6500k 260mA 47 V 8 w 1119 146
24×560 48 6500k 350mA 48 V 11 w 1384 131
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-MS5067NC-NF2757-8
 50X67 8 3000k 260mA 25 V 6 w 951 148 DATASHEET

SOLUTIONS
50X67 8 3000K 300mA 25 V 8 w 1080 143
50X67 8 3000k 350mA 26 V 9 w 1235 137
50X67 8 4000k 260mA 25 V 6 w 965 150
50X67 8 4000K 300mA 25 V 8 w 1096 145
50X67 8 4000k 350mA 26 V 9 w 1254 139
50X67 8 5000k 260mA 25 V 6 w 1036 161
50X67 8 5000K 300mA 25 V 8 w 1176 156
50X67 8 5000k 350mA 26 V 9 w 1346 149
50X67 8 6500k 260mA 25 V 6 w 1029 160
50X67 8 6500K 300mA 25 V 8 w 1168 154
50X67 8 6500k 350mA 26 V 9 w 1336 148
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-MS9090NC-NV4144-4
 90X90 4 3000k 700mA 48 V 34 w 4500 135 DATASHEET

SOLUTIONS
90X90 4 3000K 1050mA 49 V 51 w 6372 124
90X90 4 3000k 1400mA 50 V 71 w 8092 115
90X90 4 4000k 700mA 48 V 34 w 4732 142
90X90 4 4000K 1050mA 49 V 52 w 6701 130
90X90 4 4000k 1400mA 50 V 71 w 8509 121
90X90 4 5000k 700mA 48 V 34 w 5368 161
90X90 4 5000K 1050mA 49 V 52 w 7561 147
90X90 4 5000k 1400mA 50 V 71 w 9579 136
90X90 4 6500k 700mA 48 V 34 w 5116 154
90X90 4 6500K 1050mA 49 V 52 w 7206 140
90X90 4 6500k 1400mA 50 V 71 w 9129 130
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-ML55280NC-NF2757-33
 55X280 33 3000k 350mA 64 V 23 w 3559 152 DATASHEET

SOLUTIONS
55×280 33 3000k 500mA 67 V 34 w 4887 139
55×280 33 4000k 350mA 64 V 23 w 3612 154
55×280 33 4000k 500mA 67 V 34 w 4959 141
55×280 33 5000k 350mA 64 V 23 w 3878 166
55X280 33 5000k 500mA 67 V 34 w 5321 151
55X280 33 6500k 350mA 64 V 23 w 3851 165
55X280 33 6500k 500mA 67 V 34 w 5285 150
X-ML55280LM-3030 2D-33
 55X280 33 3000k 350mA 66 V 23 w 3605 157 DATASHEET

SOLUTIONS
55X280 33 3000k 500mA 68 V 34 w 4899 143
55X280 33 4000k 350mA 66 V 23 w 3853 167
55X280 33 4000k 500mA 68 V 34 w 5239 153
55X280 33 5000k 350mA 66 V 23 w 4047 176
55X280 33 5000k 500mA 68 V 34 w 5486 160
55X280 33 6500k 350mA 66 V 23 w 3917 170
55X280 33 6500k 500mA 68 V 34 w 5308 155
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-MS7373NC-NVS319A-4
 73×73 4 3000k 700mA 12 v 8 w 1121 136 DATASHEET

SOLUTIONS
73×73 4 3000K 1050mA 12 v 13 w 1600 126
73×73 4 3000k 1400mA 12 v 17 w 2039 118
73×73 4 4000k 700mA 12 v 8 w 1177 143
73×73 4 4000K 1050mA 12 v 13 w 1680 132
73×73 4 4000k 1400mA 12 v 17 w 2141 124
73×73 4 5000k 700mA 12 v 8 w 1343 163
73×73 4 5000K 1050mA 12 v 13 w 1920 151
73×73 4 5000k 1400mA 12 v 17 w 1448 141
73×73 4 6500k 700mA 12 v 8 w 1279 156
73×73 4 6500K 1050mA 12 v 13 w 1828 144
73×73 4 6500k 1400mA 12 v 17 w 2331 135
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-ML51222LM-5050-16
 51X222 16 3000k 500mA 97 V 49 w 7466 157 DATASHEET

SOLUTIONS
51X222 16 3000k 700mA 100 V 70 w 9987 144
51X222 16 3000k 900mA 103 V 93 w 12328 133
51X222 16 4000k 500mA 97 V 49 w 7816 165
51X222 16 4000k 700mA 100 V 70 w 10415 151
51X222 16 4000k 900mA 103 V 93 w 12827 139
51X222 16 5000k 500mA 97 V 49 w 8335 176
51X222 16 5000k 700mA 100 V 70 w 11071 160
51X222 16 5000k 900mA 103 V 93 w 13584 147
51X222 16 6500k 500mA 97 V 49 w 8304 175
51X222 16 6500k 700mA 100 V 70 w 11087 160
51X222 16 6500k 900mA 103 V 93 w 13666 148
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)
X-MS45146LM-LUXEON5050-12
 45×146 12 3000k 500mA 71 v 36 w 5600 157 DATASHEET

SOLUTIONS
45×146 12 3000K 700mA 74 v 52 w 7490 144
45×146 12 3000k 900mA 77 v 69 w 9246 133
45×146 12 4000k 500mA 71 v 36 w 5862 165
45×146 12 4000K 700mA 74 v 52 w 7811 151
45×146 12 4000k 900mA 77 v 69 w 9620 139
45×146 12 5000k 500mA 71 v 36 w 6251 176
45×146 12 5000K 700mA 74 v 52 w 8303 160
45×146 12 5000k 900mA 77 v 69 w 10187 147
45×146 12 6500k 500mA 71 v 36 w 6228 175
45×146 12 6500K 700mA 74 v 52 w 8315 160
45×146 12 6500k 900mA 77 v 69 w 10249 148
Product Code Dimensions
(mm)		 Number of LEDs CCT Operating Current Typical Voltage Power Lumen Output Efficiency
(LM/W)

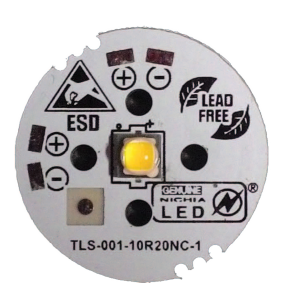

X-MR0020NC-NVS219C-1
 20 1 3000k 700mA 3 v 2 w 284 136 DATASHEET

SOLUTIONS
20 1 3000k 1050mA 3 v 3 w 400 123
20 1 4000k 700mA 3 v 2 w 299 143
20 1 4000k 1050mA 3 v 3 w 421 130
20 1 5000k 700mA 3 v 2 w 322 154
20 1 5000k 1050mA 3 v 3 w 451 139
20 1 6500k 700mA 3 v 2 w 308 148
20 1 6500k 1050mA 3 v 3 w 431 133
