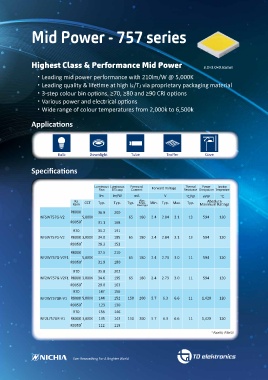

Page 8 - LED Modules

Mid Power - 757 series

Highest Class & Performance Mid Power

ɾ Leading mid power performance with 210lm/W @ 5,000K

ɾ F/TJ via proprietary packaging material
ɾ
ɾ
ɾ Wide range of colour temperatures from 2,000k to 6,500k

Bulb Downlight Tube Cove

Luminous Luminous Forward Forward Voltage Thermal Power
Flux Current Resistance Temperature
lm lm/W mA V o C/W mW o C
Ra CCT Typ. Typ. Typ. Abs. Min. Typ. Max. Typ. Absolute
Rank Max.
R8000 36.9 200
NFSW757G-V2 5,000K 65 180 2.4 2.84 3.1 13 594 120
R9050 * 31.1 168
R70 35.2 191
NFSW757G-V2 R8000 3,000K 34.0 185 65 180 2.4 2.84 3.1 13 594 120
R9050 * 28.3 153
R8000 37.5 210
NF2W757G-V2F1 5,000K 65 180 2.4 2.73 3.0 11 594 120
R9050 * 31.9 180
R70 35.8 202
NF2W757G-V2F1 R8000 3,000K 34.6 195 65 180 2.4 2.73 3.0 11 594 120
R9050 * 29.0 163
R70 147 156
NF2W757GR-V1 R8000 5,000K 144 152 150 200 5.7 6.3 6.6 11 1,420 120
R9050 * 123 130
R70 138 146
NF2L757GR-V1 R8000 3,000K 135 143 150 200 5.7 6.3 6.6 11 1,420 120
R9050 * 112 119

* Ra≥90; R9≥50
