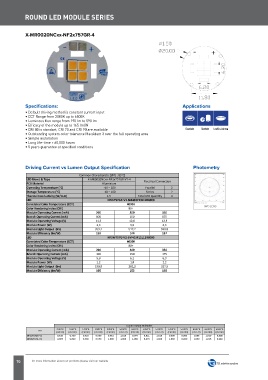

Page 70 - LED Modules

X-ML16300NCxx-NFSx757GR-12
PRODUCT PHOTO
PRODUCT PHOTO
SPECIFICATIONS X-MR0066NC-4080-NFSx757G-25
• Default driving method is constant current input
• CCT Range from 2000°K up to 6500°K
DATASHEET DATASHEET • Default driving method is constant current input
SPECIFICATIONS
• Luminous flux range from 516 lm to 1664 lm
• Efficacy of the module up to 183 lm/W
• CRI 80 is standart, CRI 70 and CRI 90 are available
• CCT Range from 2000°K up to 6500°K
• Outstanding system color tolerance MacAdam 3 over the full operating area
• Luminous flux range from 816 lm to 1545 lm
• Efficacy of the module up to 168 lm/W
• Simple installation
• CRI 80 is standard, CRI 70 and CRI 90 are available
• Long life-time > 60,000 hours
• Outstanding system color tolerance MacAdam 3 over the full operating area
• 5 years guarantee at specified conditions
• Simple installation
• Long life-time > 60,000 hours
X-MR0066NC-4080-NFSx757G-25 X-ML16300NCxx-NFSx757GR-12 APPLICATIONS For your orders please call us:
• 5 years guarantee at specified conditions
+90 444 27 33
For your orders please call us:
+90 444 27 33
APPLICATIONS

Spotlight
Low Bay Lighting
Downlight
Interior Task Lighting Hospitality
Architecrual Lighting
Lighting
PHOTOMETRY

PHOTOMETRY

Common Characteristic [@Tj : 85°C]
LED Brand & Type X-MR0020NCxx-NF2x757GR-V1-4
PCB Material Aluminium Electrical Connection
Operating Temperature (°C) -40 ~ 100 Parallel 2 W/O LENS
Storage Temperature (°C) -40 ~ 100 Series 2
Thermal Conductivity (W/m-K) 1.5. Total LED Quantity 4
LED NF2L757GR-V1-SM403P19L12R8000
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80+ W/O LENS VANESSA-B-O VANESSA-B-S VANESSA-B-W
Module Operating Current (mA) 200 300 350
Branch Operating Current (mA) 100 150 175
Module Operating Voltage (V) 11,3 12,0 12,3 All Rights Reserved for TLS Technology Systems | Subject to Change with out Prior Notice.
All Rights Reserved for TLS Technology Systems | Subject to Change with out Prior Notice.
Akçaburgaz Mahallesi 3080. Sokak No:5 Esenyurt / İstanbul | www. tlsteknoloji.com | TEL: +90 444 27 33
Module Power (W) 2,3 3,6 4,3 Akçaburgaz Mahallesi 3080. Sokak No:5 Esenyurt / İstanbul | www. tlsteknoloji.com | TEL: +90 444 27 33
Module Light Output (lm) 359,2 517,2 590,8
Module Efficiency (lm/W) 159 144 137
LED NFSW757G-V2-SM403P11L11R8000
Correlated Color Temperature (CCT) 4000K
Color Rendering Index (CRI) 80+
Module Operating Current (mA) 200 300 350
Branch Operating Current (mA) 100 150 175
Module Operating Voltage (V) 5,8 6,1 6,3
Module Power (W) 1,2 1,8 2,2
Module Light Output (lm) 190,9 282,2 327,5
Module Efficiency (lm/W) 165 153 148

The table below shows how to Module Light Output changes depending on CCT (°K)
Lumen Output Multiplier
2000°K 2500°K 2700°K 3000°K 4000°K 5000°K 5000°K 5000°K 5700°K 5700°K 5700°K 6500°K 6500°K 6500°K
LED
(CRI 80) (CRI 80) (CRI 80) (CRI 80) (CRI 80) ( CRI 70) (CRI 80) (CRI 90) ( CRI 70) (CRI 80) (CRI 90) (CRI 70) (CRI 80) (CRI 90)
NF2x757GR-V1 0,610 0,730 0,910 0,950 0,961 1,010 0,994 0,811 1,010 0,996 0,805 1,005 1,010 0,800
NFSW757G-V2 0,683 0,820 0,960 0,990 1,000 1,060 1,060 0,894 1,060 1,060 0,880 1,050 1,016 0,880

Relative luminous intensity versus CCT (°K)

70
