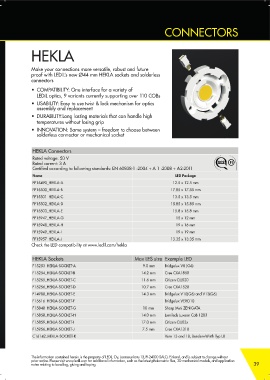

HEKLA

Make your connections more versatile, robust and future
proof with LEDiL’s new Ø44 mm HEKLA sockets and solderless
connectors
• COMPATIBILITY: One interface for a variety of
LEDiL optics, 9 variants currently supporting over 110 COBs
• USABILITY: Easy to use twist & lock mechanism for optics
assembly and replacement
• DURABILITY:Long lasting materials that can handle high
temperatures without losing grip
• INNOVATION: Same system – freedom to choose between
solderless connector or mechanical socket

HEKLA Connectors
Rated voltage: 50 V
Rated current: 3 A
Certified according to following standards: EN 60838-1 :2004 + A 1 :2008 + A2:2011
Name LED Package
FP15490_HEKLA-A 12.5 x 12.5 mm
FP15500_HEKLA-B 17.85 x 17.85 mm
FP15501_HEKLA-C 13.5 x 13.5 mm
FP15502_HEKLA-D 15.85 x 15.85 mm
FP15503_HEKLA-E 15.8 x 15.8 mm
FP15947_HEKLA-G 15 x 12 mm
FP15948_HEKLA-H 19 x 16 mm
FP15949_HEKLA-I 19 x 19 mm
FP15957_HEKLA-J 13.35 x 13.35 mm
Check the LED compatibility at www.ledil.com/hekla

HEKLA Sockets Max LES size Example LED
F15253_HEKLA-SOCKET-A 9.0 mm Bridgelux V8 (G6)
F15254_HEKLA-SOCKET-B 14.2 mm Cree CXA1850
F15255_HEKLA-SOCKET-C 11.6 mm Citizen CLL020
F15256_HEKLA-SOCKET-D 10.7 mm Cree CXA1520
F14988_HEKLA-SOCKET-E 14.3 mm Bridgelux V10(G6) and V13(G6)
F15616_HEKLA-SOCKET-F Bridgelux VERO10
F15848_HEKLA-SOCKET-G 10 mm Sharp Mini ZENIGATA
F15858_HEKLA-SOCKET-H 14.0 mm Lumileds Luxeon CoB 1203
F15859_HEKLA-SOCKET-I 17.0 mm Citizen CLL03x
F15956_HEKLA-SOCKET-J 7.5 mm Cree CXA1310
C16142_HEKLA-SOCKET-K Vero 13 and 18, Bender+Wirth Typ L8
