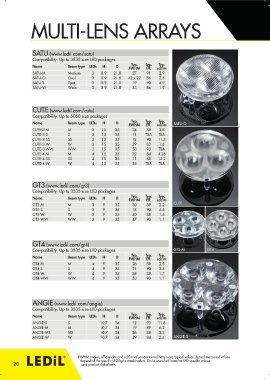

Page 20 - LEDiL Catalogue

MULTI-LENS ARRAYS

SATU (www.ledil.com/satu)
Compatibility: Up to 3535 size LED packages
Typ.
Typ.
Name Beam type LEDs H D FWHM Typ. cd/lm
Eff.
SATU-M Medium 3 8.9 21.8 27 91 2.9
SATU-O Oval 3 8.9 21.8 42 x 22 86 2.5
SATU-S Spot 3 8.9 21.8 19 90 4.9
SATU-W Wide 3 8.9 21.8 33 86 1.9

CUTE (www.ledil.com/cute)
Compatibility: Up to 5050 size packages
Typ.
Typ.
Name Beam type LEDs H D FWHM Typ. cd/lm SATU-O
Eff.
CUTE-3-M M 3 15 35 24 88 3.8
CUTE-3-S S 3 15 35 11 TBA TBA
CUTE-3-SS SS 3 15 35 12 90 11.3
CUTE-3-W W 3 15 35 39 83 1.6
CUTE-3-WW WW 3 15 35 58 93 TBA
CUTE-4-M M 4 15 35 22 84 4.26
CUTE-4-SS SS 4 15 35 11 88 13.2
CUTE-4-W W 4 15 35 38 TBA TBA
GT3 (www.ledil.com/gt3)
Compatibility: Up to 3535 size LED packages
Typ.
Typ.
Name Beam type LEDs H D FWHM Typ. cd/lm
Eff.
GT3-M M 3 9 35 30 89 2.2 CUTE
GT3-S S 3 9 35 18 90 4.5
GT3-W W 3 9 35 40 88 1.6
GT3-WW WW 3 9 35 47 90 1.1

GT4 (www.ledil.com/gt4)
Compatibility: Up to 3535 size LED packages GT3-M GT4
Typ.
Typ.
Name Beam type LEDs H D FWHM Typ. cd/lm
Eff.
GT4-M M 4 9 35 28 88 2.5
GT4-S S 4 9 35 21 90 3.3
GT4-W W 4 9 35 38 89 1.7
GT4-WW WW 4 9 35 53 90 1.1
ANGIE (www.ledil.com/angie)
Compatibility: Up to 3535 size LED packages
Typ.
Typ.
Name Beam type LEDs H D FWHM Typ. cd/lm
Eff.
ANGIE-S S 10,7 34 12 93 11.8
ANGIE-M M 10,7 34 19 89 6.2
ANGIE-M2 M2 10,7 34 26 88 3.3
ANGIE-W W 10,7 34 29 84 2.4 ANGIE-S
FWHM angles, efficiencies and cd/lm values contained herein are typical values. Actual measured values
20 depend of the specific LED/optic combination. Go to www.ledil.com for LED specific values
and product datasheets.
